The TR120S V2 sees our personal creative touch which will set a new direction in the market for extruded aluminium sim rigs with a sexy curve that gives the TR120S V2 a ‘wide-body’ look. From 2008 we have learnt a lot in the sim rig space to give beginner and professional sim racers exactly what they need, for the right price
Trak Racer cockpits use thicker aluminium profile walls than the competition and include heavier duty brackets and a better-designed chassis for extra rigidity in the wheel mount uprights. It's Strong, Extremely Adjustable, and has a huge list of available accessories. In the usual Trak Racer way, we gathered customer feedback from thousands of customers to develop the TR120.
Trak Racer, a pioneer in building racing cockpits since 2008, became the Official and Trusted Simulator Supplier to Alpine F1. Trak Racer simulators are used by Alpine F1 Team and Alpine Academy drivers like Esteban Ocon, Victor Martins (Formula 3) and Caio Collet (Formula 3). Trak Racer is the official Simulator Supplier of Alpine F1 Team and Airbus Aircraft.
Trak Racer is the Official Simulator Supplier of Alpine F1 Team and Airbus Aircraft.By gathering feedback since 2008, Trak Racer is able to offer as much, or as little as you need. Start small or go "all-out" from the beginning - we've got your back.
Add Genuine Trak Racer Seat Brackets to your frame for a Side-Mounted Bucket Seat or office chairs / vehicle-style recline seat.
Since 2008 we have learnt a lot about Sim Racer comfort, particularly for endurance. We present you with a range of Premium, Sim Racing-specific seating options.
The TR120S V2 is rigid and ready for either an Integrated Monitor Stand or of course, a freestanding Monitor Stand. Get full immersion with a Genuine Trak Racer monitor stand.
Your Feedback Is Our Creation
The TR120S V2 has been improved to withstand hundreds of kilograms in braking force without flex. Select between a pre-drilled mounting plate or extruded aluminium profile with heel plate; suitable for more new pedal sets on the market. The pre-drilled pedal plate also features a fine-tune slide function - so you can get those pedals exactly where you need them!
If you want the option to quickly adjust the pedals between GT (low), Formula (high) or inverted (upside down), this is the pedal mounting choice for you! Made to the high standard that you would expect from Trak Racer, and pre-drilled for all the major brands of pedals.
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. Fully Adjustable and ready for anything you want to add to it.
The TR Gen 2 shifter mount has been strengthened by completely over-hauling the design and increasing the thickness of the mount – it also has a fine-tune slide adjustment!
TR has even created new mounts for other peripherals including handbrake and flight sim mounts that will add directly onto the side of the plate, or of course to any 8mm aluminum profile.
The TR Premium seat slider runner kit will give you quick adjustments of the seat position and lock you in with the least amount of play.
Trak Racer offers options for free standing, and integrated display stands for One, Two, Three and Four monitors. Get that immersive experience with the highest quality monitor stands available that have an enormous adjustment range and will stand the test of time.
We eliminate the hassle of assembling complex racing setups by offering fully built simulators. Contact us about our ready-to-race simulators and enjoy the convenience of receiving a ready-to-use racing cockpit.
The Trak Racer TR120S V2 is motion-ready, contact us for options and assistance in selecting the best performing and cost-effective motion system. Don’t settle for just moving your seat. Get that whole frame moving!
The Trak Racer TR120S V2 Racing Simulator is a powerhouse in the sim racing world, built with years of expertise since Trak Racer started in 2008. Its base structure consists of a rigid 120mm x 40mm anodized black aluminium T-Slot extruded profile, offering superior strength and durability. The TR120S V2 features heavy-duty wheel uprights supported by Trak Racer-Signature Corner Brackets to ensure a no-flex racing experience, perfect for both Direct Drive Force Feedback and Belt Drive Wheels.
The Trak Racer TR120S V2 Racing Simulator is a powerhouse in the sim racing world, built with years of expertise since Trak Racer started in 2008. Its base structure consists of a rigid 120mm x 40mm anodized black aluminium T-Slot extruded profile, offering superior strength and durability. The TR120S V2 features heavy-duty wheel uprights supported by Trak Racer-Signature Corner Brackets to ensure a no-flex racing experience, perfect for both Direct Drive Force Feedback and Belt Drive Wheels.
Key Features & Benefits:The TR One Wheel Mounting System offers easy adaptability as you upgrade your wheelbase. It includes two high-quality 80x40mm aluminium profiles and four anodized aluminium plates in red or black. This system also provides plenty of adjustment for angle and forward/backward fine-tuning to ensure a perfect position.
Optimized for Sim Racing:The Trak Racer TR120S V2 is designed to meet the demands of competitive sim racing with its rigid construction and no-flex features, making it compatible with the strongest Direct Drive Force Feedback systems. It is fully customizable with a wide range of sim racing accessories to elevate your racing experience.
What's IncludedSince 2008, Trak Racer has been favored by professional drivers/pilots, game centers, massive gaming events, and event hire companies. By offering the highest quality gear in the industry, Trak Racer has collaborated with big-name brands such as, but not limited to, Alpine F1, Airbus, Xbox, Ubisoft, Sony, Castrol, Accord Hotels, and more.
If you're looking to partner with Trak Racer please get in touch.
SEE MORE IN ACCESSORIES!
Contact us if your product is not listed
| FEATURES |
FS3 V2 |
TR40S |
RS6 |
TR80S |
TR8 PRO |
TR160 |
TR120S |
TR160S |
ALPINE TRX |
|---|---|---|---|---|---|---|---|---|---|
| ALPINE F1 TEAM APPROVED | No | No | No | No | Yes | No | No | No | Yes |
| FRAME TYPE | High grade steel | Base: 40 × 40mm aluminium extruded profile Uprights: 80 × 40mm aluminium extruded profile | 2" tubular profile | 80×40mm aluminium extruded profile | 2" tubular profile | 160×40mm aluminium extruded profile | 120×40mm aluminium extruded profile | 160×40mm aluminium extruded profile | 2" tubular profile |
| RECOMMENDED WHEELBASE TORQUE | 0 to 5Nm | 0 to 10Nm | 0 to 8Nm | 0 to 16Nm | 0 to 25Nm | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ |
| ASSEMBLED DIMENSIONS (WIDTH x LENGTH) | 584mm×895mm | 660mm×1200mm | 540mm×1185mm | 660mm×1200mm | 600mm×1300mm | 660mm×1445mm | 660mm×1445mm | 660mm×1445mm | 765mmx1520mm |
| WEIGHT | 18kg (40lbs) | 24.8kg (54.7lbs) | 38kg (83lbs) | 32kg (70.5lbs) | 51kg (112lbs) | 41kg (90.4lbs) | 37kg (81.6lbs) | 42.1kg (92.1lbs) | 73.5kg (162lbs) |
| WHEELBASE MOUNT OPTIONS | Wheel plate | Wheel plate | Wheel plate | Wheel plate | Wheel plate | 1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
| PEDAL MOUNT OPTIONS | Steel plate | Steel plates (split) | Steel plate | Steel plates (split) | Steel plate | Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate |
| PEDAL TRAY ADJUSTABILITY | Low | Low | Low to medium | High | Low to medium | Medium to high | Medium to high | Medium to high | High |
| FORMULA/GT HYBRID PEDAL SYSTEM | No | No | No | Yes | No | Optional | Optional | Optional | Yes |
| GEAR SHIFT MOUNT | Included | Optional | Included | Optional | Included | Included | Optional | Optional | Optional |
| SEAT SLIDER RAILS | Not applicable | Optional | Included | Optional | Included | Included | Included | Included | Included |
| INTEGRATED MONITOR STAND COMPATIBILITY | Not applicable | Optional Single up to 80" Triple up to 32" Excluding quad |
Not applicable | Optional Single up to 80" Triple up to 32" Excluding quad |
Optional Single up to 70" |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 80" Triple up to 45" Including quad |
Optional Single up to 70" |
| MOTION-READY | No | Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Motion base required |
| APPROXIMATE ASSEMBLY TIME | 1 hour | 7+ hours | 1 hour | 7+ hours | 1 hour | 7+ hours | 7+ hours | 7+ hours | 2 hours |
| ADJUSTMENT TIME BETWEEN FORMULA AND GT DRIVING POSITIONS | Not applicable | Not applicable | Not applicable | 30 minutes | Not applicable | 30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
3–5 minutes |
| OVERALL COMMENT | A great entry-level wheel stand to give you a taste for sim racing, flight sim, or for those who have limited space. | Exceptionally priced entry-level rig that will handle most belt-driven and direct drive wheel bases (up to 8Nm) | A simple-to-assemble entry level cockpit, with easy access and enough strength to handle most wheel bases and pedals without flex. | A great cockpit that offers huge adjustment in the pedal mount. | Fast and easy assembly. Rigid enough to handle direct drive wheel bases up to 25Nm without flex. The quick-slide wheel mount and option for integrated monitor stand make the TR8 pro a stand-out rig. | The most rigid rig on the market with double-walled aluminum extrusion and heavier duty brackets and mounts. | Unique in it's design and setting a new standard for extrusion-style cockpits. The TR120S is a full-sized rig with endless adjustment. Includes the TR-One wheel mounting system. | The next size up from the TR120S, the TR160S is unique in its design. Includes the TR-One wheel mounting system. | Co-developed with Alpine F1 Team Engineers, the Alpine Racing TRX is a huge advancement in cockpits for its quick adjustments and rigidity |
| Quality |
Rated 5 out of 5
|
This thing is AMAAAAAAZING! Looks so SICK! The sturdy design is perfect e en for a hefty racer. I love it!
| Quality |
Rated 5 out of 5
|
|---|

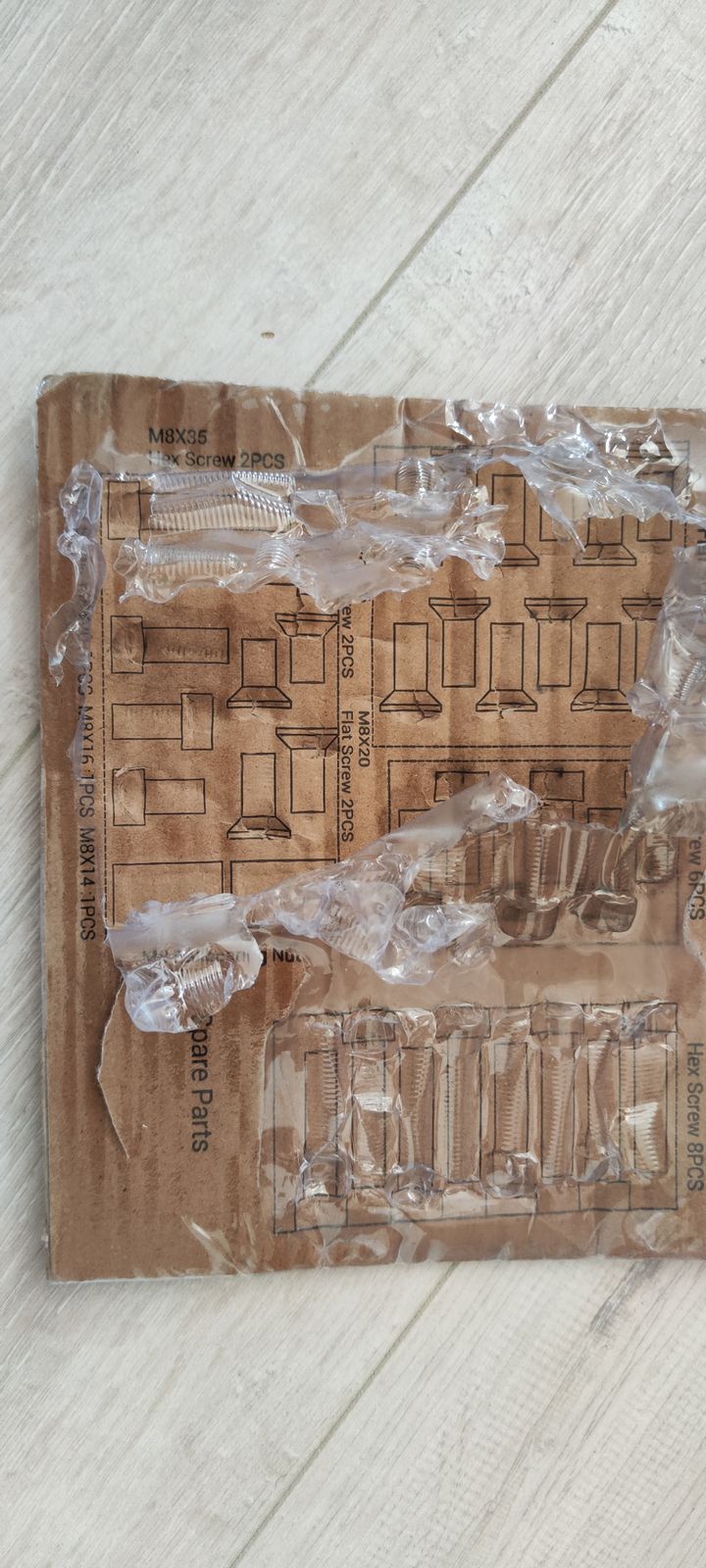

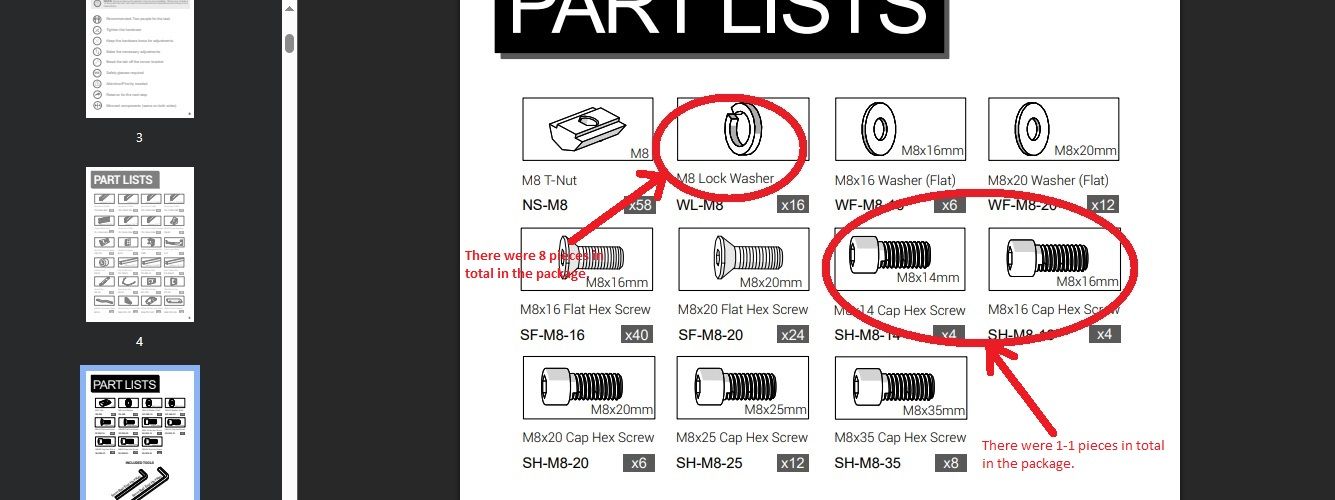

I didn't get enough screws for the kit so I couldn't assemble it. I reported to support that there weren't enough screws, but they didn't help, they made all sorts of excuses. So I went to the local screw store and bought screws so I could assemble it. This is not what I expected from this brand. On the way, they asked how much the screw cost? "If I take a picture and send the invoice, they will pay me the price of the screw" The whole process is a joke!!!
Thanks for pointing this out to us, as we're currently in the process of updating all of our manuals, will make sure to note this down and make the necessary changes
Every part arrived at the same time and the shipping was FAST !
I have no complaints, all parts were in perfect condition and no scratches
or missing parts.
Very satisfied w/ my purchase and IF I ever have the need to upgrade or
purchase another sim-rig, Track-Racer is my go to !
| Quality |
Rated 5 out of 5
|
|---|
The rig is a beast. I can’t understand what’s the use of the 160 model!
One flaw that I think is already fixed…
Bad instructions…
Thank you very much George for your awesome Review.
We are happy that you feel this way. Indeed the TR120s is a solid and strong frame, but there are still some fans and hardcore enthusiasts that use heavy motion and a lof of addons that are just looking for the ultime rig, which then is the TR160.
Happy to hear as well that the manuals were clear and easy to follow as it seems. This was our goal and we are working hard on reworking ALL manuals and match them to the quality that we want and you, the customers, deserve.
Enjoy your new sim
The Trak Racer Team
The build wasn’t really easy you do have to have some basic skills but if I can do it anyone can. Took some time but it’s the best thing I bought since my driving liscense
However it should be said that the treads in the fiberglass chair are quite fragile and can be easily damaged so be careful with those.
If you are still doubting on buying from trak I’d understand it is quite expensive but I can confirm that after you’ve purchased your sim the only regret you will have is that you didn’t bought it earlier.
Hi Luc, thank you for your fantastic 5-star review! We're absolutely thrilled to hear the TR120S V2 has become the best purchase since your driving license as this is and incredible praise and really made our day.
You're spot on about the assembly requiring some basic skills, and we appreciate you mentioning that. It's great to know that with a bit of patience and time, the build process is totally manageable for most people.
For the threads in the fibreglass chair, this will be reviewed by our team if there is a possible problem with, so thank you fro bringing this to our attention.
Your final comment really resonates with us as we hear that "wish I'd bought it sooner" sentiment quite often, and it's one of the best compliments we can receive. It shows we're delivering the quality and experience that makes the investment truly worthwhile.
Enjoy your new sim and happy racing!
The Trak Racer Team
