Qubic Seat Belt Tensioner with Universal Bracket - for Trak Racer and Non-Trak Racer Cockpits

Rated 5.0 out of 5
Based on 2 reviews

QS1-BU-BRACKET-UK

£1,395.00 GBP
/
Estimated shipping cost: £22.00 GBP ! The shipping estimate only applies to this product Shipping calculated at checkout.
  • Dual-channel direct-drive tensioner (400 N combined)
  • Simulates braking, lateral Gs, cornering & traction loss
  • Adds immersion to DD wheels & motion platforms
  • Bracket included to mount on TR40S, TR80S, TRX & TR8
  • Optional red or black seat harness
Only 13 items in stock!
Download Manual
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Realistic G-Force & Braking Feedback

Experience the full weight of real-world forces as the QS-BT1 dynamically tightens the seatbelt during heavy braking and high-G cornering. Dual voltage channels deliver precise, real-time force as you hold a racing line, countersteer mid-drift, or swing through fast turns. The system adjusts belt pressure to mirror deceleration loads, lateral overloads, and centrifugal force—giving your body intuitive cues for braking points, apex pressure, and vehicle control.

Detailed Vehicle Dynamics & Surface Effects

Feel deep engine pulses, kerb strikes, and shifting road textures transmitted directly through your harness. The QS-BT1 accurately reproduces surface changes and power delivery across supported titles, adding the subtle tactile detail that brings simulation environments to life. Each gear change triggers a responsive belt tug, simulating the shift jolt found in high-performance vehicles for added realism and immersion.

Multi-Axis Flight & Advanced Simulation Feedback

The QS-BT1 supports G-force simulation across both vertical and lateral axes, making it ideal for racing and flight. It can replicate positive and negative Gs, throttle transitions, weapon recoil, and even flare deployment with precision. While motion platforms excel at short-burst effects, they struggle with sustained Gs—something even high-end 6DOF rigs can’t fully reproduce. The QS-BT1’s 200 N channelled system fills that gap, delivering the prolonged physical load your body expects.

Trust & Safety

  • Designed with voltage protection and speed-limiting logic
  • Force output tuned for immersion and user safety
  • Compatible with integrated Motion-Lock circuits (QS-DD-20, QS-220, QS-V20)
  • Optional external Motion-Lock switch supported with accessory

Universal Bracket for Trak Racer Rigs

The precision-engineered, powder-coated aluminium bracket provides a secure, rock-solid mounting solution for TR40S, TR80S, TRX, and TR8 simulators, ensuring every force is accurately transmitted.

SPECIFICATIONS

  • Product Name
  • Qubic System QS-BT1 Direct Drive Seat Belt Tensioner

  • Drive System
  • Dual-channel direct-drive

  • Force per Channel
  • 200 N (20.5 kg / 45 lbs)

  • Combined Force
  • 400 N (41 kg / 90 lbs)

  • Motion Integration
  • QS / PS / HS platforms

  • Usage
  • Sim racing, flight sim, training, and experimental builds

  • Supported Effects (Racing)
  • Braking, lateral g-forces, cornering centrifugal force, wheel skid / lock, RPM limiter, engine vibration, gear shift, oversteer / traction loss, road roughness, pre-impact simulation

  • Supported Effects (Flight)
  • Positive & negative G, deceleration / braking, banked turns, cannon/missile discharge, flare deployment (where supported)

  • Safety
  • Motion-Lock compatible, dual-voltage logic

  • Dimensions
  • 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in

  • Main Device Weight
  • 12 kg/26.46 lbs

  • Power Supply Weight
  • 2.8 kg/6.17 lbs
WHAT'S INCLUDED
  • Main unit (QS-BT1)
  • USB cable
  • External power supply with power cord
  • 2x Low friction inserts for seat belts slots
  • Universal mounting adapter
  • Motion-Lock jumper + interlink cable
  • Universal Trak Racer Mounting Bracket
BRACKET COMPATIBILITY
  • Trak Racer TR40S Simulator
  • Trak Racer TR80S Simulator
  • Trak Racer TRX Simulator
  • Trak Racer TR8 Simulator
Write a Review
average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Customer photos and videos
Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal
2 Reviews
Reviewed by Terje M. A.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Satisfied buyer

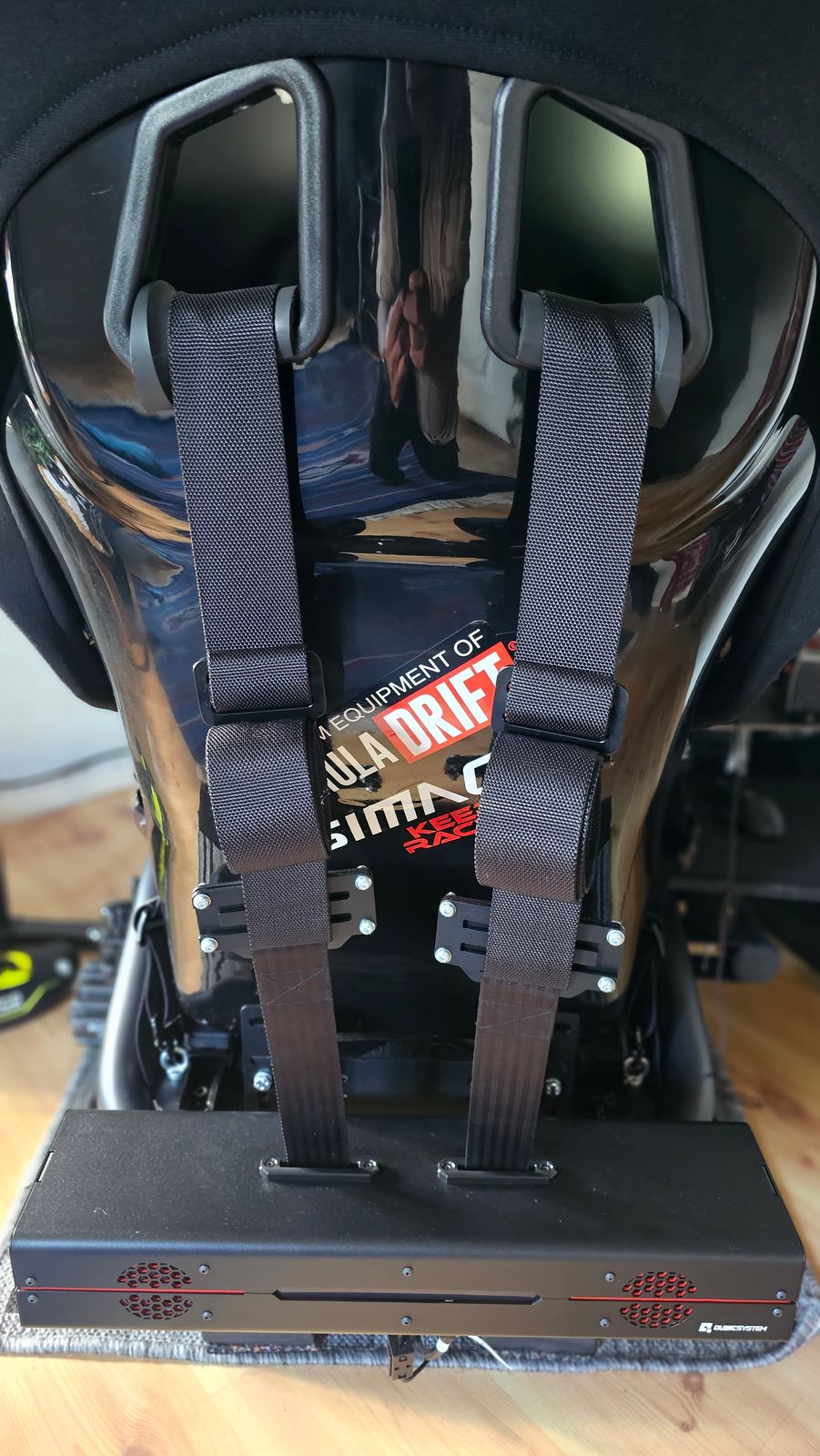

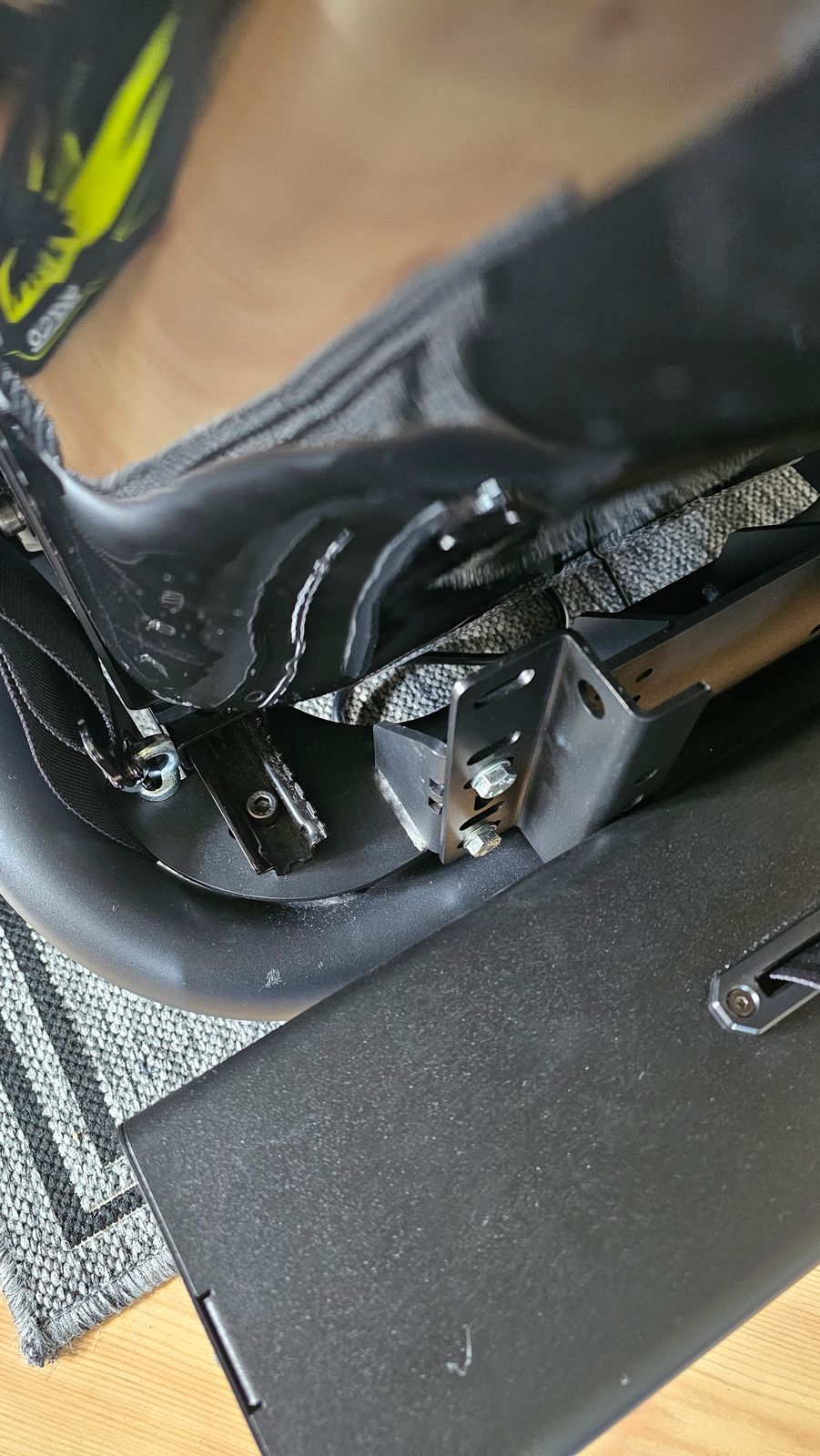

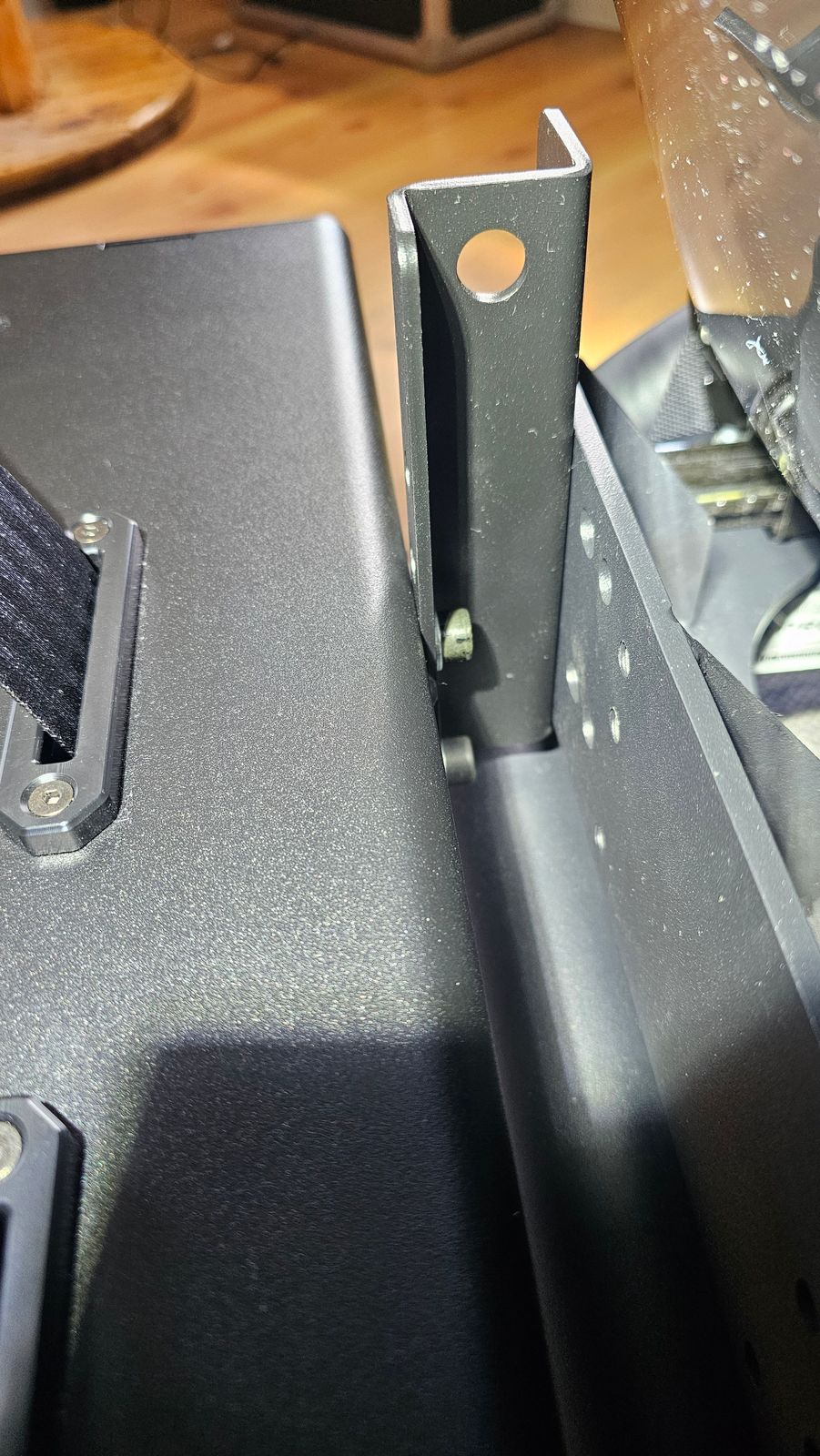

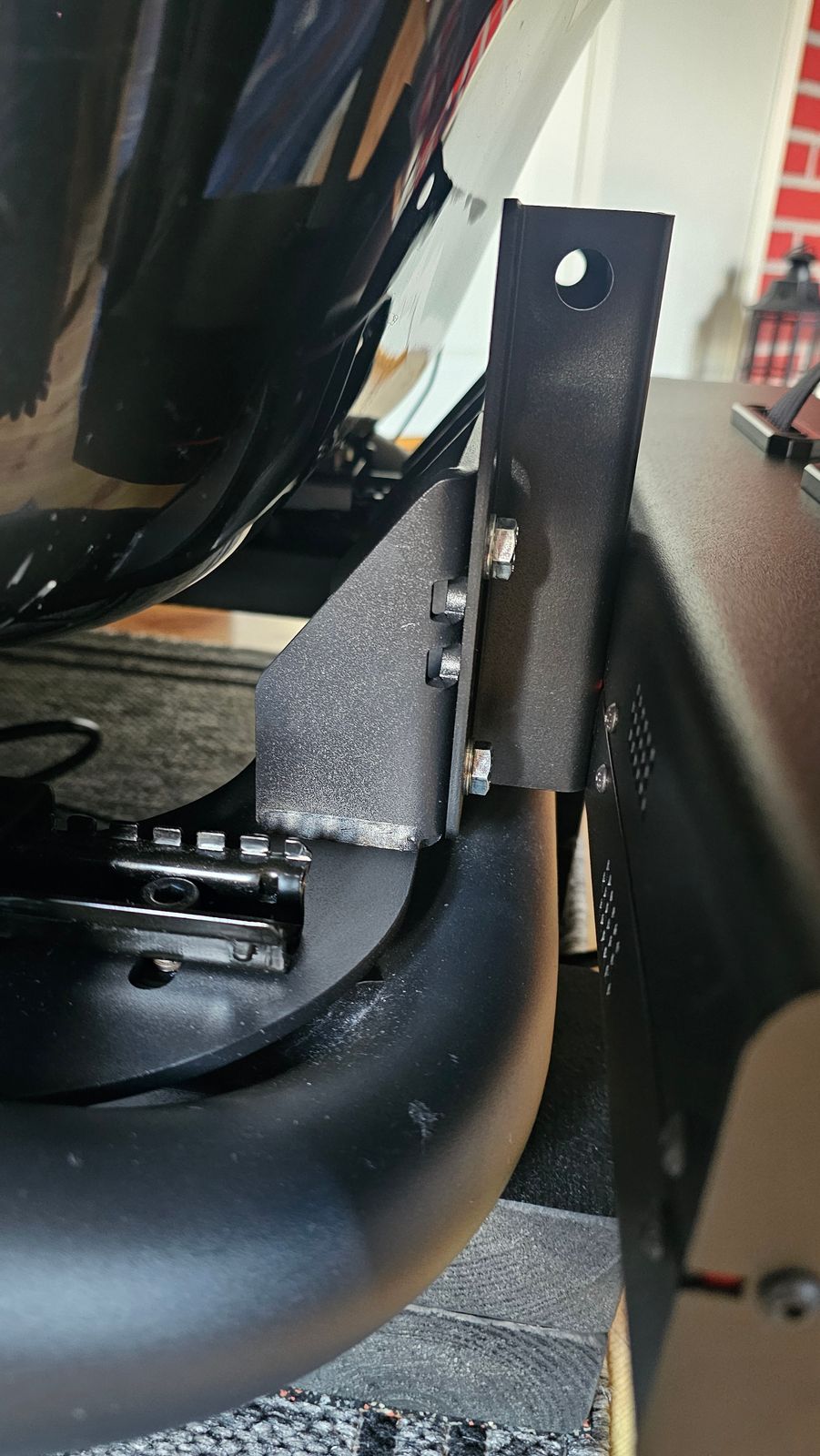

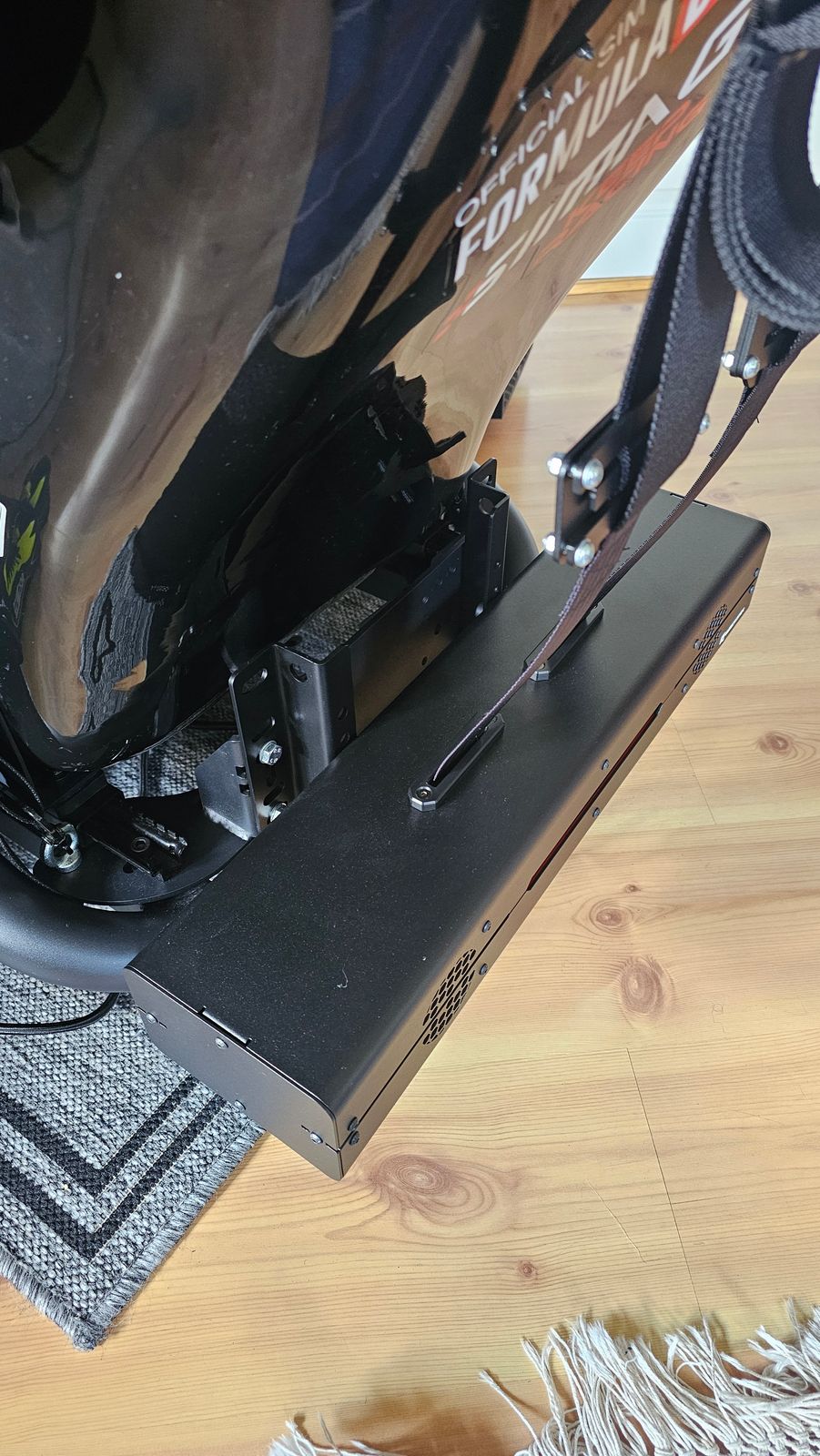

Everything fit perfectly. The parts were mounted on the Track Racer TR8 Pro frame. The only thing that could be changed is the Allen screws between the bracket and the belt tensioner. Maybe they should have been hex to make it easier to adjust the height. The Allen key is too big.

Loading...
Open Image by Terje M. A. in a modal Open Image by Terje M. A. in a modal Open Image by Terje M. A. in a modal Open Image by Terje M. A. in a modal Open Image by Terje M. A. in a modal
Was this helpful?

Trak Racer UK

Hey Terje,

Thank you for the 5-star review and for sharing your feedback! We're really glad to hear that everything fit perfectly on your TR8 Pro frame and that you're satisfied with the Qubic Seat Belt Tensioner.

We appreciate you pointing out your thoughts on the Allen screws for height adjustment. Feedback like this is valuable and we'll definitely take it into consideration for any future refinements to the design.

Thanks again for your support, and enjoy your setup! 🏁

Trak Racer Team

Reviewed by Joshua D. P.
Verified Buyer
I recommend this product
Age Range
35 - 44
Rated 5 out of 5
Review posted

GAME CHANGER

Easy to install with the Trak racer adapter, the results for what you see on your monitors during a race and feel with the tensioners is a true racing simulator upgrade, highly recommend to anyone wanting to really wanting to feel the G forces on a track or the bumps and immersion at its best, thank you again Trak Racer for the fast delivery, only suggestion would like to make is the option to buy the emergency shutoff switch / motion lock - mapped the pause mode to my steering wheel to be able and freeze the tensioners, and I had to modify my 4 point Trak racer harness to a 5 point harness, waist belt does rise up with the tensioners. Still a great buy!!

Loading...
Quality
Rated 5 out of 5
Open Image by Joshua D. P. in a modal Open Image by Joshua D. P. in a modal
Was this helpful?

Trak Racer UK

Hey Joshua,

Thank you for the amazing review! We're thrilled to hear that the Qubic Seat Belt Tensioner has been a game changer for your setup and that the installation with the Trak Racer adapter was straightforward. It's great to know you're enjoying the added immersion, from feeling G-forces to experiencing every bump on the track.

We also appreciate your detailed feedback regarding the emergency shutoff switch/motion lock and your experience with the harness setup. Suggestions like these are incredibly valuable and help us continue improving both our products and the overall user experience.

Thank you again for your support and kind words about our fast delivery. We hope you continue enjoying many immersive racing sessions with your setup! 🏁🚗

Trak Racer Team
