Simucube 2 Ultimate Direct Drive Wheel Base Overview

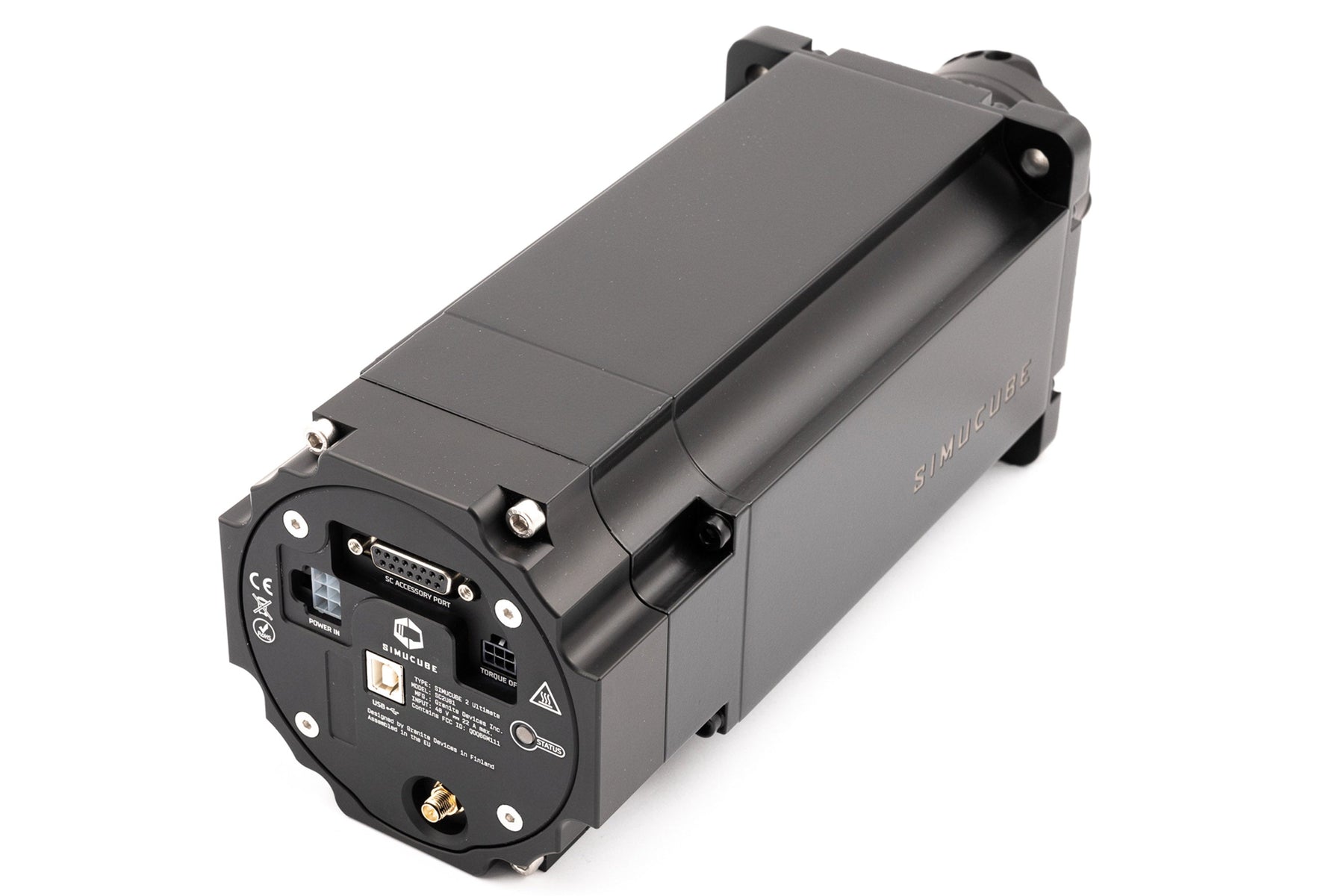

The Simucube 2 Ultimate Direct Drive System raises the bar for sim racing steering wheel systems. It offers the most realistic and detailed force feedback currently available through a high torque, brushless motor. For those seeking the very best direct drive system for their home cockpit or professional simulator, the Ultimate will provide you with the best possible feedback system available. A massive 32Nm of torque is produced from the highly optimised motor which is combined with a 24 bit Hiperface encoder to produce the most advanced signal processing unit currently available.
- The ultra low latency will give you incredible feel, you can feel and then correct those small slides sooner, putting you a step ahead of your opponents

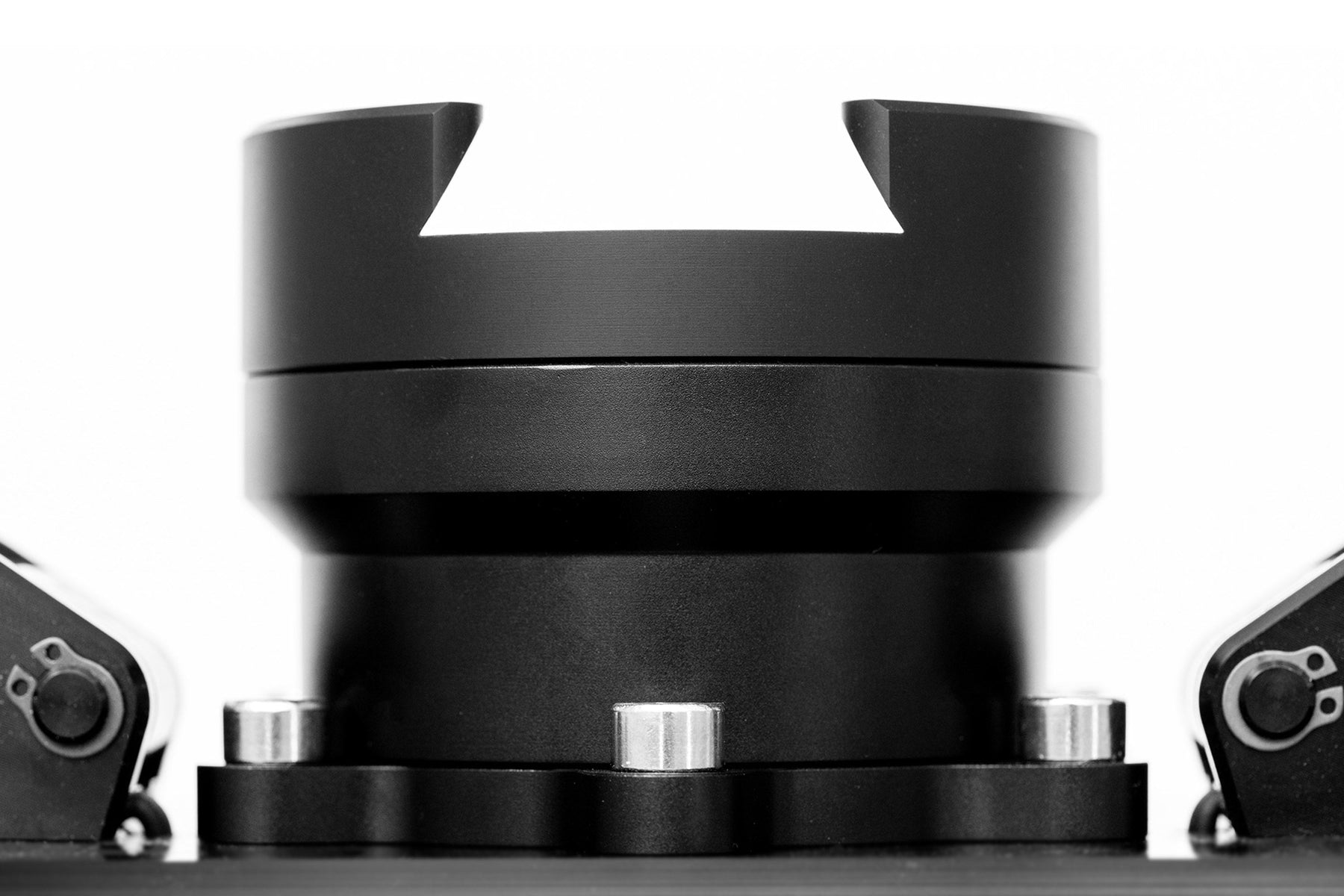

- A precision machined quick release system will give you a rock solid feel and a guided rail design that makes a steering wheel change very easy to do
- A high efficiency direct drive motor and clever electronics heat guiding means the system produces less heat and doesn't require a noisy fan to keep it cool
- Built in wireless receiver that will automatically connect to a wireless steering wheel and has an unbreakable millisecond range response time
- 5 years manufacturers warranty
Not only can the Ultimate wheel base produce a huge amount of torque, it is also highly accurate with robotics grade angle sensors and high quality encoders. This combined with custom made electronics and all wrapped up inside a full metal CNC machined case means that the Ultimate is a solid unit that is capable of providing the very best in sim racing force feedback. The base is supplied with the Simucube quick release adaptor for use with 50.8mm and 70mm PCD steering wheels and is also equipped with Simucube wireless wheel support.
Please note: Supplied with a 3 pin (UK) 110-240v AC power supply cable.
COMPARE MODELS
SIMUCUBE 2 SPORT |
SIMUCUBE 2 PRO |
SIMUCUBE 2 ULTIMATE |
|
MOTOR |
Direct Drive optimized ultra low torque ripple motor |
High response speed Direct Drive optimized ultra low torque ripple motor |
Maximum response speed, low inertia, Direct Drive optimized ultra low torque ripple motor |
SIMUCUBE WIRELESS WHEEL™ SUPPORT |
Included |
Included |
Included |
SIMUCUBE QUICK RELEASE™ |
Not Included |
Not Included |
Included |
MAX TORQUE * |
17 Nm |
25 Nm |
32 Nm |
MAX TORQUE SLEW RATE |
4.8 Nm/ms |
8.0 Nm/ms |
9.5 Nm/ms |
ANGLE SENSOR |
22 bit absolute |
22 bit absolute |
24 bit Hiperface |
TORQUE OFF BUTTON |
Standard (Premium optional) |
Standard (Premium optional) |
Premium (with remote power switch) |
POWER SUPPLY |
280 W |
R2 1 x 450 W Peak |
1000 W |
WHEEL BASE DIMENSIONS INCL. SQR™ |
130 x 130 x 250 mm |
130 x 130 x 270 mm |
115 x 115 x 310 mm |
MOUNTING HOLES |
M8 x 4 pcs threaded hole |
M8 x 4 pcs threaded hole |
9 mm dia x 4 pcs through hole |
MOUNTING HOLE PATTERN DIA |
145 mm |
145 mm |
130 mm |
FLANGE CENTERING HOLE DIA |
110 mm |
110 mm |
110 mm |
WHEEL BASE WEIGHT |
8.0 kg |
11.1 kg |
11.3 kg |
STANDARD WARRANTY |
24 months |
24 months |
60 months |
*) Torque is continuous until motor gets very hot. In preliminary testing, no-one has managed to cause torque to start throttling. |
|||
SIMUCUBE 2 SPORT |
SIMUCUBE 2 PRO |
SIMUCUBE 2 ULTIMATE |
|
TORQUE RECONSTRUCTION PROCESSING |
Yes |
Yes |
Yes |
STATIC FORCE REDUCTION |
Yes |
Yes |
Yes, in detail adjustable |
NATURAL DAMPING, INERTIA AND FRICTION FILTERS |
Yes |
Yes |
Yes, in detail adjustable |
ULTRA LOW LATENCY MODE |
Yes |
Yes |
Yes |
TORQUE SLEW RATE ADJUSTMENT |
1 – 4.8 Nm/ms |
1 – 8.0 Nm/ms |
1 – 9.5 Nm/ms |
What's Included

- Simucube 2 Ultimate Wheelbase
- 1 x Power supply (R2 Single PSU Update)
- Cables
- Stop button

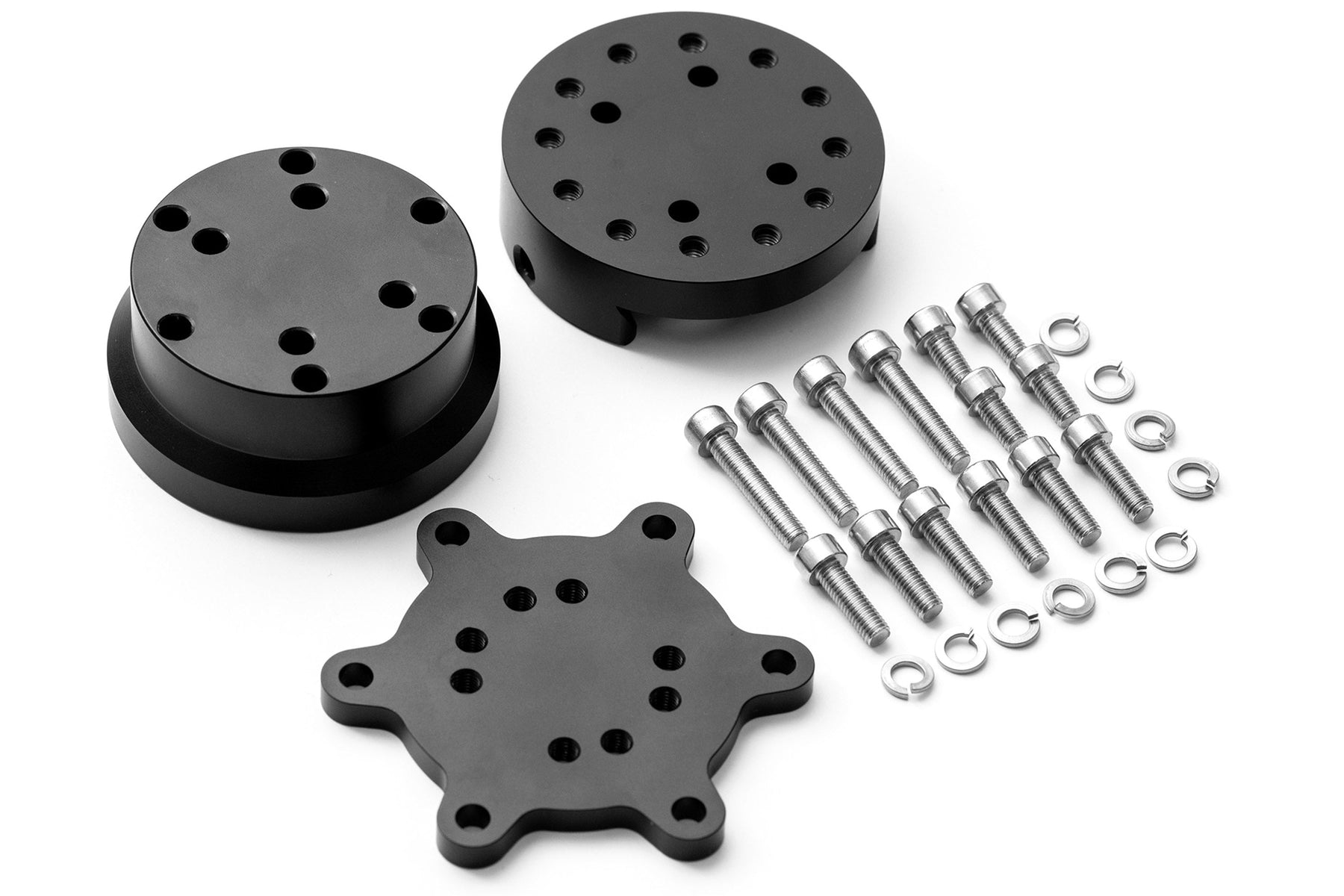

- Simucube SQR hub mount (motor side and wheel side kit) and wheel mounting screws
- Mounting bolts for front mount
